FO 510 - Industrial oil moisture sensor

Accurate moisture measurement in oil is critical to ensure quality and performance in a wide range of industrial applications. Our metrology offering enables you to optimize operations, prevent downtime, and meet the highest quality standards. Rely on our expertise in moisture measurement to improve your industrial processes.

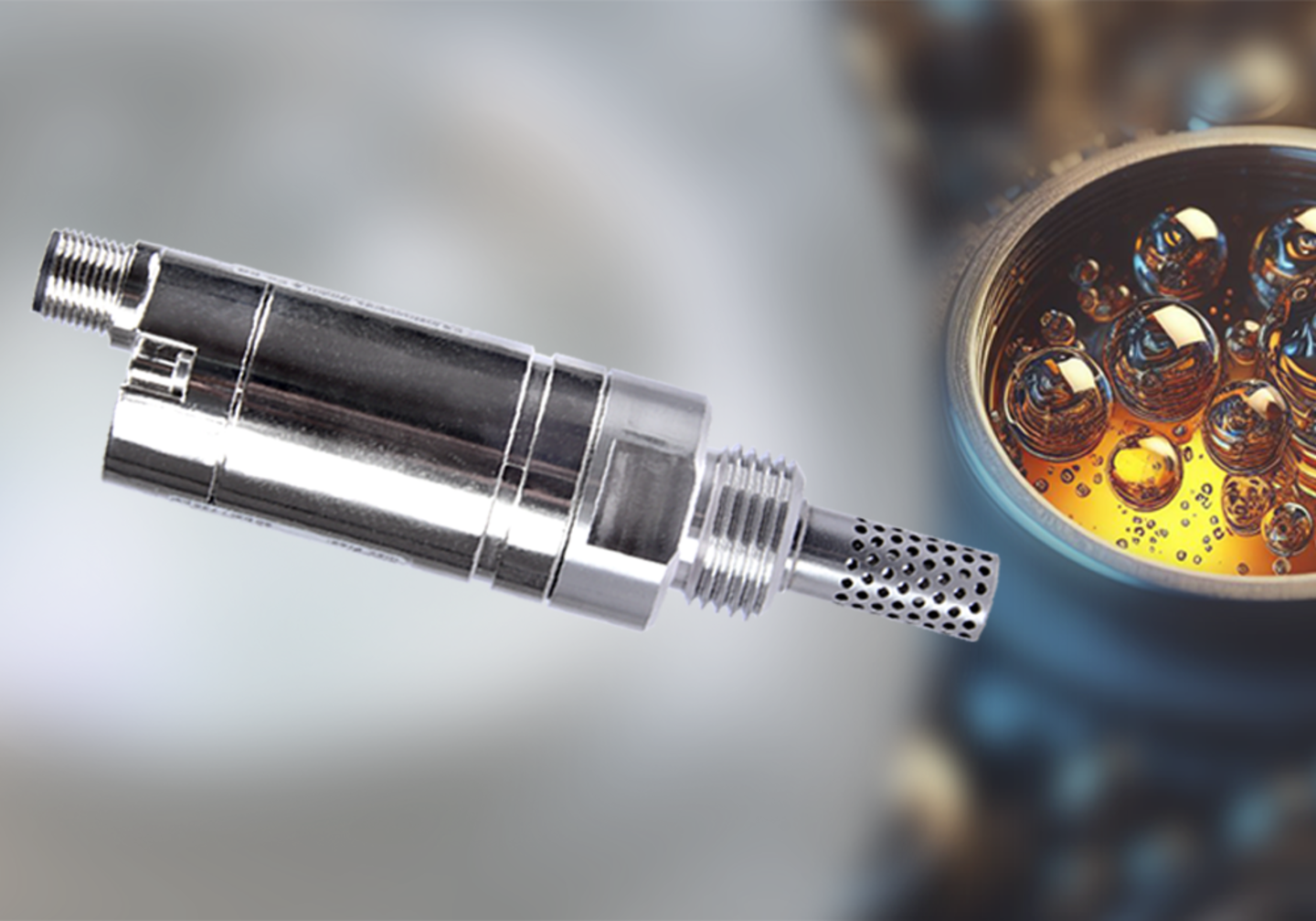

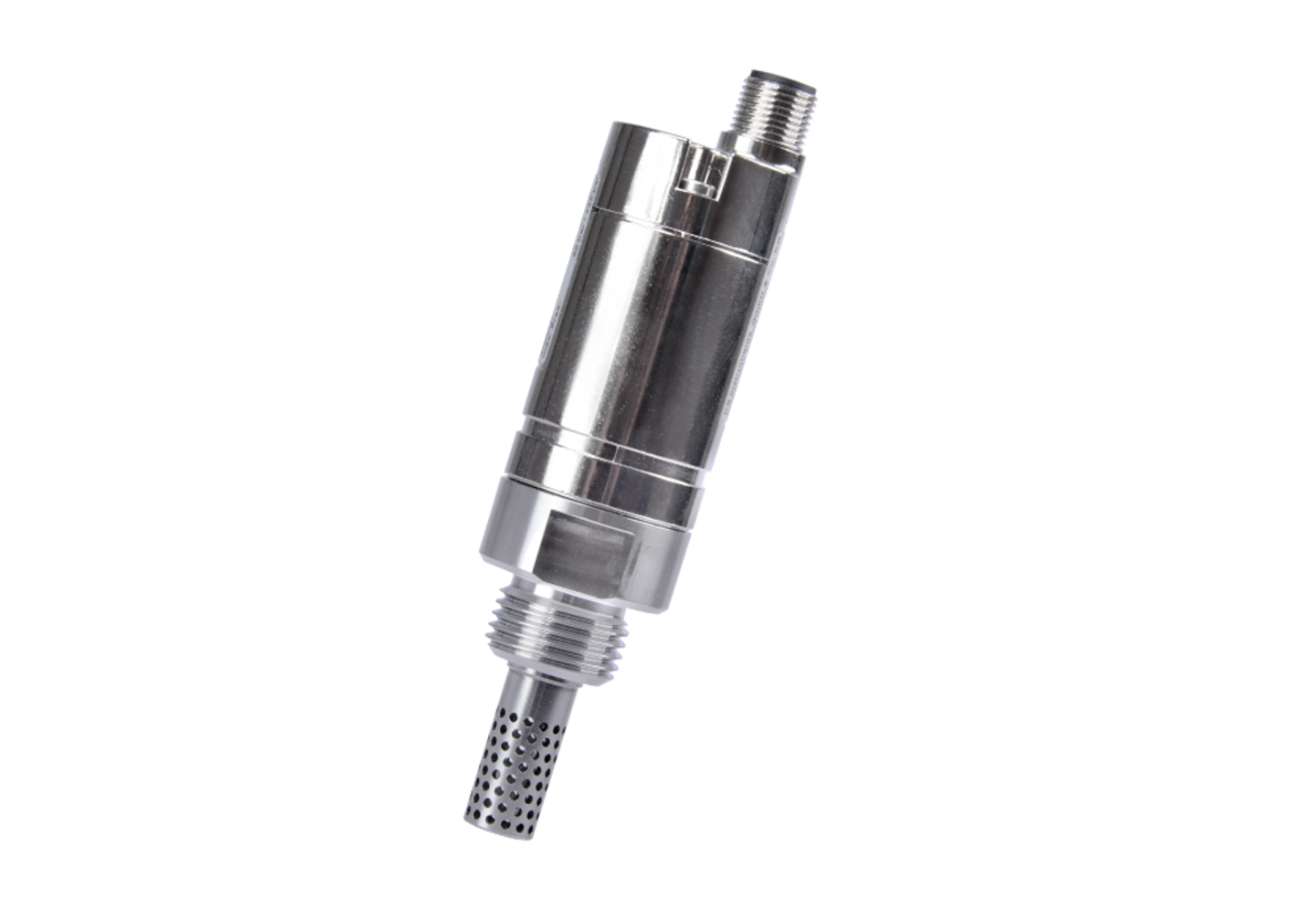

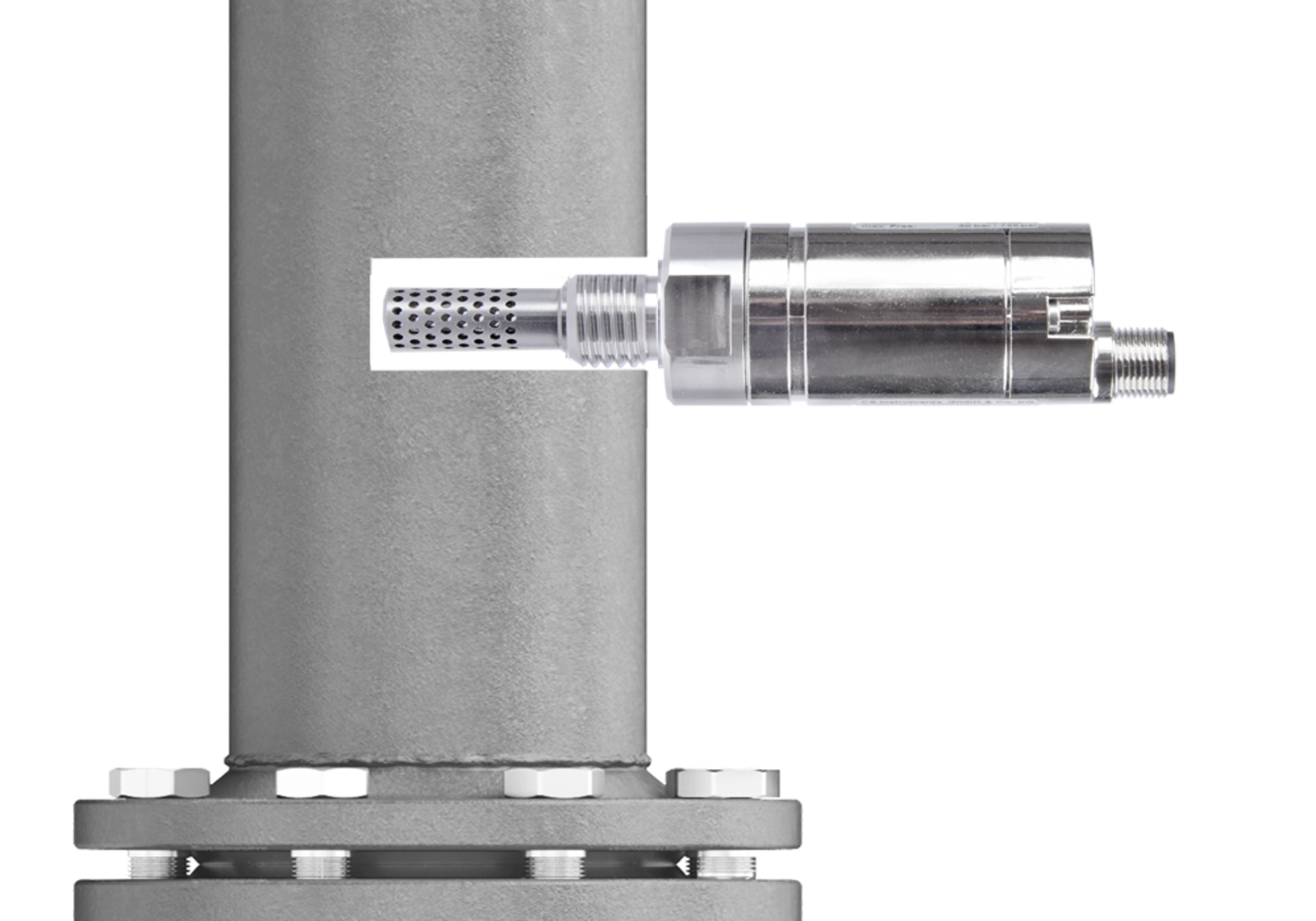

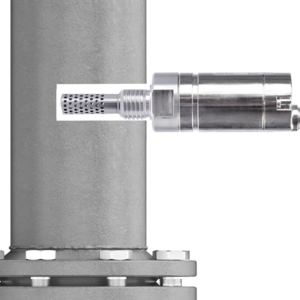

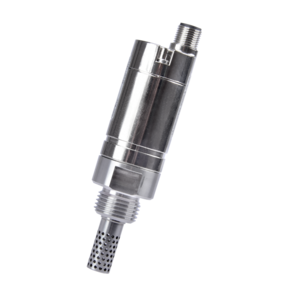

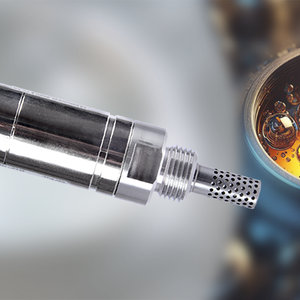

The FO 510 from CS INSTRUMENTS is a highly accurate and extremely stable sensor designed for accurate measurement of water activity (aw) and oil temperature (t) in lubricating, hydraulic, transformer oil, and diesel fuel. The measured data is output via two 4-20 mA outputs and the Modbus RTU interface. The optional service software also allows the user to customize the oil sensor, make Modbus settings, and set the output configuration.

to the request
The product has been added to the request.
to the request

Do you have specific requirements?
Select the appropriate attributes in our configurator and receive a customized quote for your request.

Configure product

Details

  • Measured variables: Water activity (aw), temperature (t) and water content in PPM (x)
  • Fast response time
  • Öltemperatur bis 100°C
  • Pressure tight up to 300 bar
  • Two analog outputs
  • Digital Modbus RTU interface
  • ISO G ½" or ½" NPT threaded connection
Instruction manual FO 510
