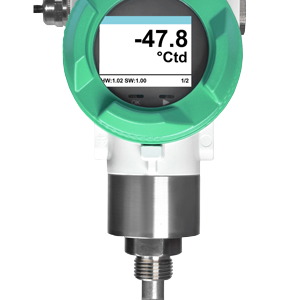

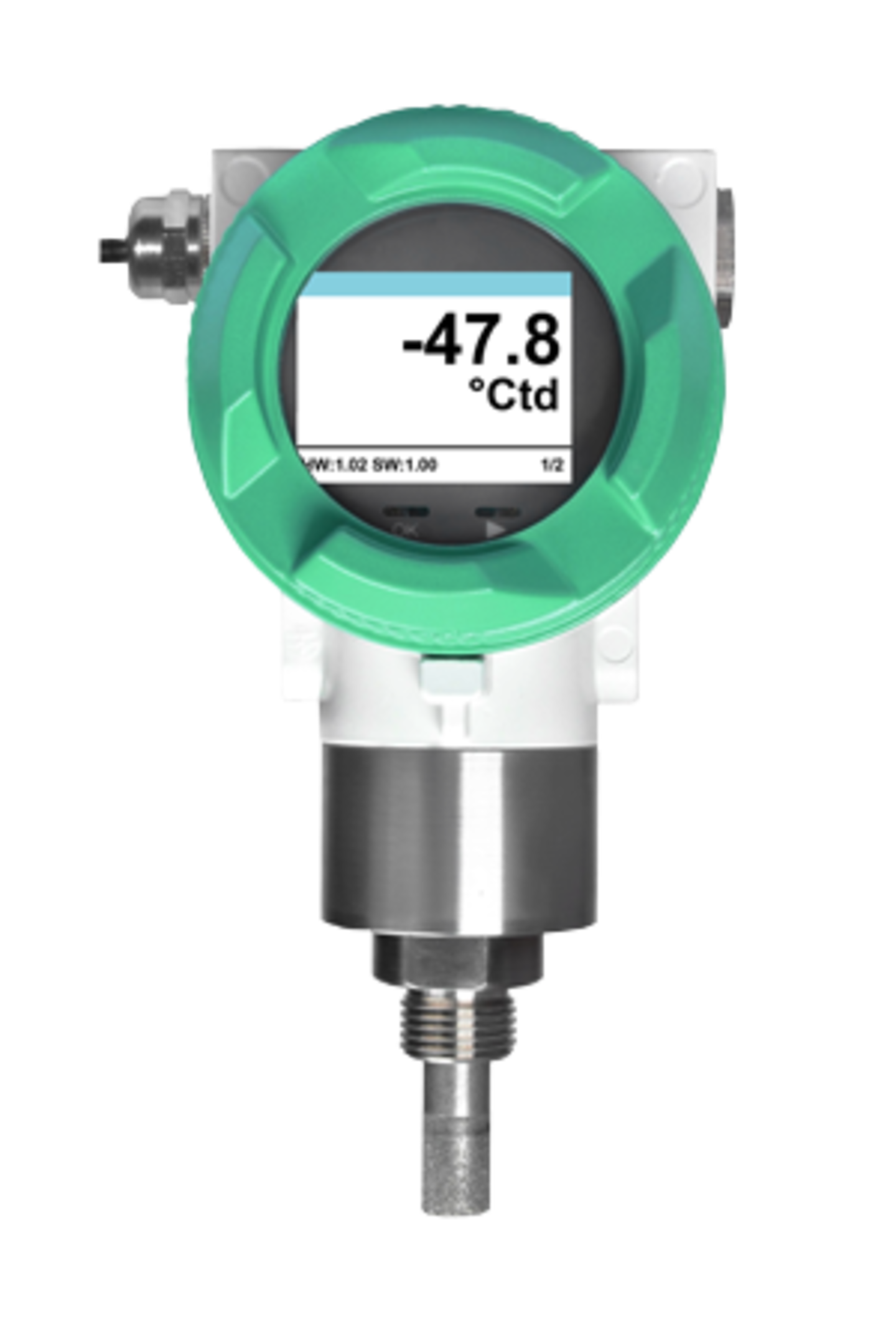

FA 550 - for dew point measurement in compressed air and gas under harsh industrial conditions
FA 550 - for dew point measurement in compressed air and gas under harsh industrial conditions

FA 550 - Dew point sensor in robust die-cast aluminum housing

The FA 550 is ideally suited for outdoor dew point measurement and reliably determines dew points even under harsh industrial conditions.

  • Dew point measurement in compressed air systems after adsorption dryers, membran dryers or refrigeration dryer
  • Residual moisture measurement and dew point measurement in gases such as: oxygen, nitrogen, argon, hydrogen, natural gas, biogas...
to the request
The product has been added to the request.
to the request

Do you have specific requirements?
Select the appropriate attributes in our configurator and receive a customized quote for your request.

Configure product

Details

  • Robust, waterproof die-cast aluminum housing, IP 67
  • Alarm relay - limit value adjustable via buttons (max 60VDC, 0.5 A)
  • 4 ... 20 mA analog output
  • Optional: 2 pieces 4 ... 20 mA analog output e.g. for dew point and temperature
  • Extremely long-term stable
  • Fast adjustment time
  • Pressure resistant up to 500 bar (optional)
  • NEW: Modbus RTU interface
  • NEW: Ethernet interface (optional)
  • NEW: Higher resolution of the sensor signal due to improved evaluation electronics
  • NEW: Sensor diagnosis on-site with handheld device or CS Service Software
  • Readable via Modbus: pressure dew point [° Ctd.], temperature [° C], rel. humidity [% RH], abs. humidity [g / m3], degree of humidity [g / m3], moisture content V / V [ppmV / V], Partial vapor pressure [hPa], atmospheric dew point [° Ctd.atm]
Instruction manual FA 550

Product configurator

You can easily create one or more configurations for this product.

When you add the product to the inquiry, all of your configurations will be automatically included in the inquiry.

Your current configuration

[[ error ]]

Select a variant

[[ completedSteps ]] / [[ totalSteps ]]

  1. [[ step.txt ]]

You have successfully completed your configuration.
Add it to your request now.

You have successfully completed your configuration.
You can now easily request it directly.

to the request

Not sure which option is right for you? Our experts will be happy to help.
Add the product, including all configurations, directly to your request.

Not sure which option is right for you? Our experts will be happy to help.
Request the product — including all configurations — now.

to the request
Do you have another use case?
You can easily start another configuration for the product right here.
[[ 'Your product is %xx% % configured'.replace('%xx%', progressPercentage.toFixed(0)) ]]

Accessories

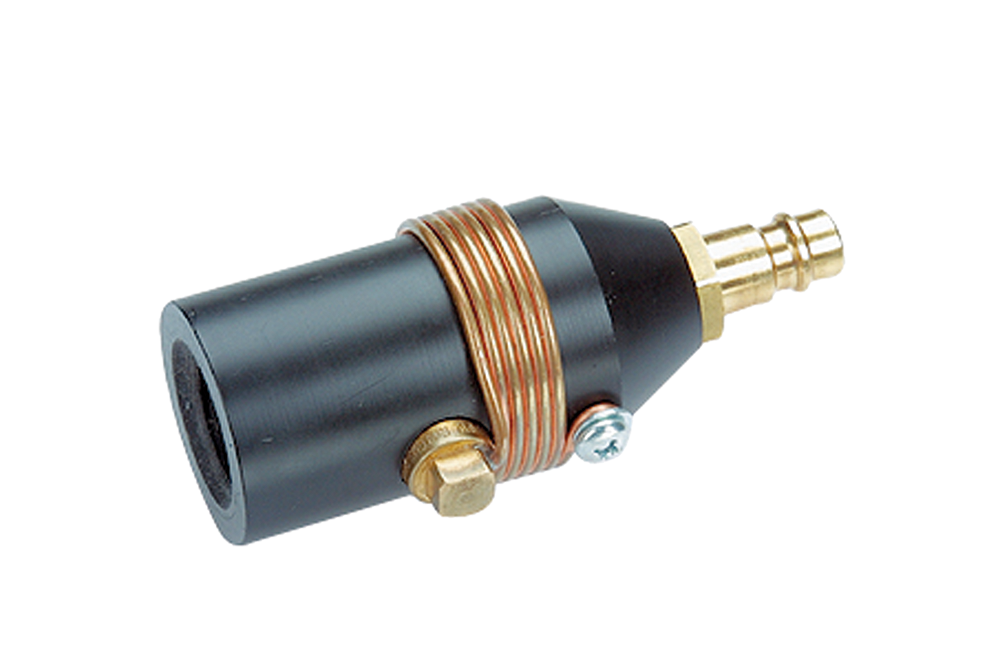

Standard measuring chamber for compressed air up to 16 bar

Standard measuring chamber

for compressed air up to 16 bar

More

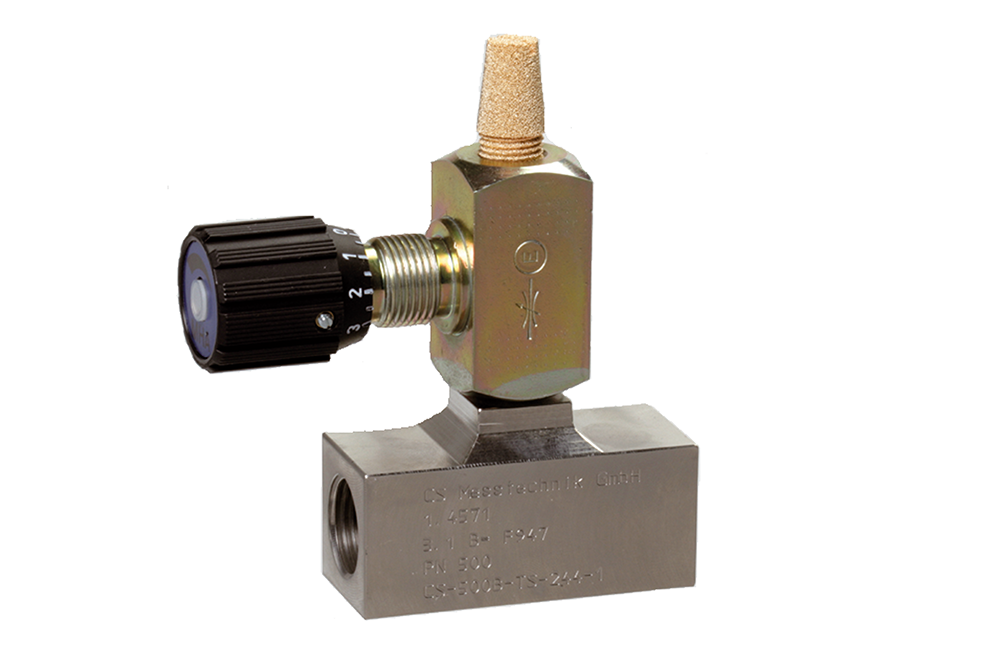

High-pressure measuring chamber for compressed air up to 350 bar

High-pressure measuring chamber up to 350 bar

for dew point measuring in high pressure systems such as diving applications, breathing protection for fire departments etc.

More

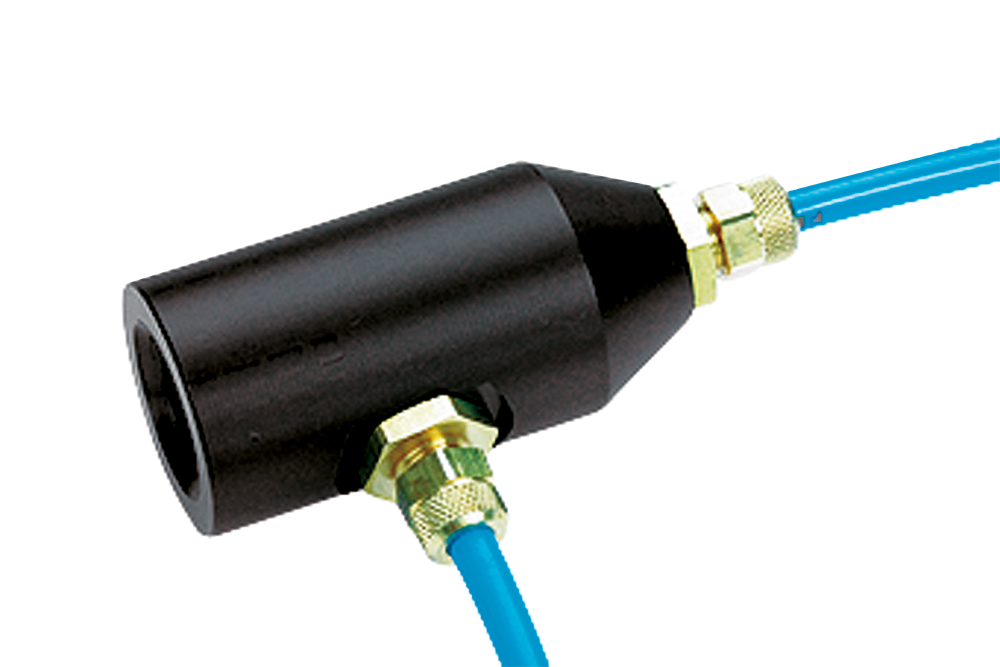

Measuring chamber for granulate dryers up to 250 mbar

Measuring chamber for granulate dryers and gases

Applicable for -1...16 bar

More

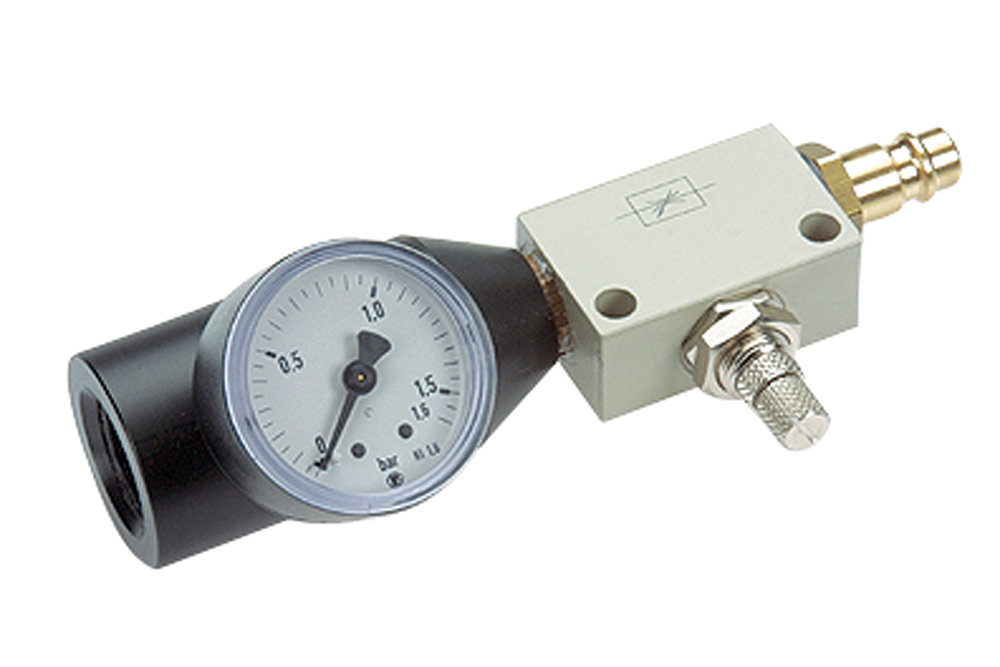

Measuring chamber for atmospheric dew point

Measuring chamber for atmospheric dew point

especially for e.g. applications in the medical field

More

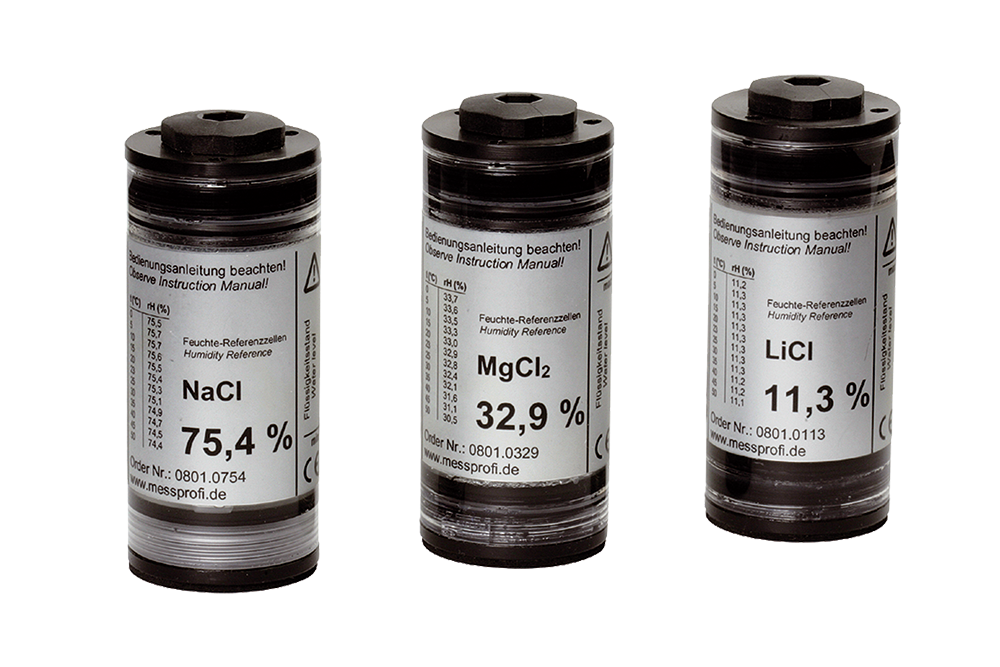

Control and calibration set for dew point sensors

Control and calibration set for dew point sensors

is screwed onto the dew point sensor and therefore enables an easy and low-priced possibility for on-site control and calibration down to -20°Ctd.

More

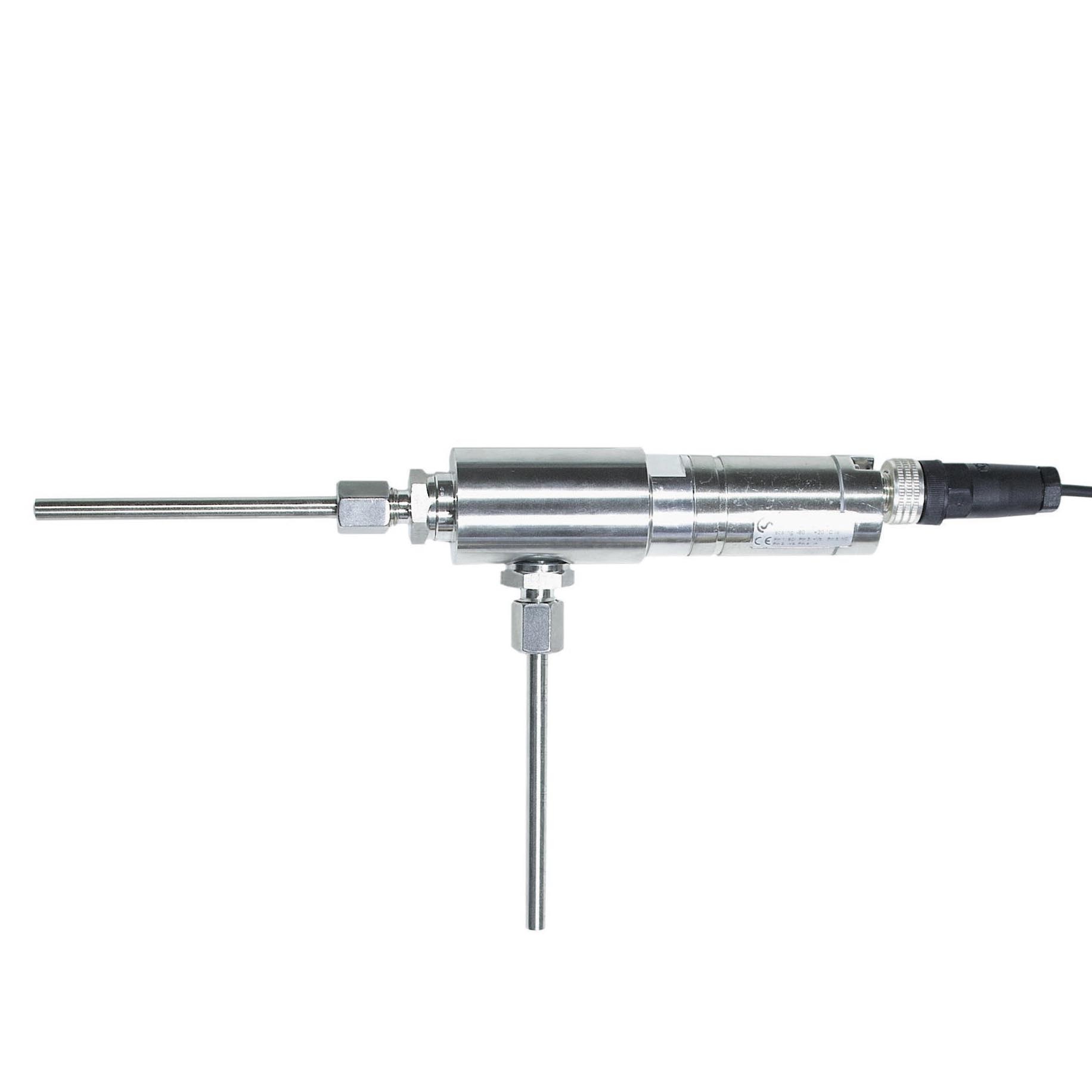

Stainless steel Bypass measuring chamber up to 500 bar

for dew point measurement in gases (stainless steel 1.4305)

More

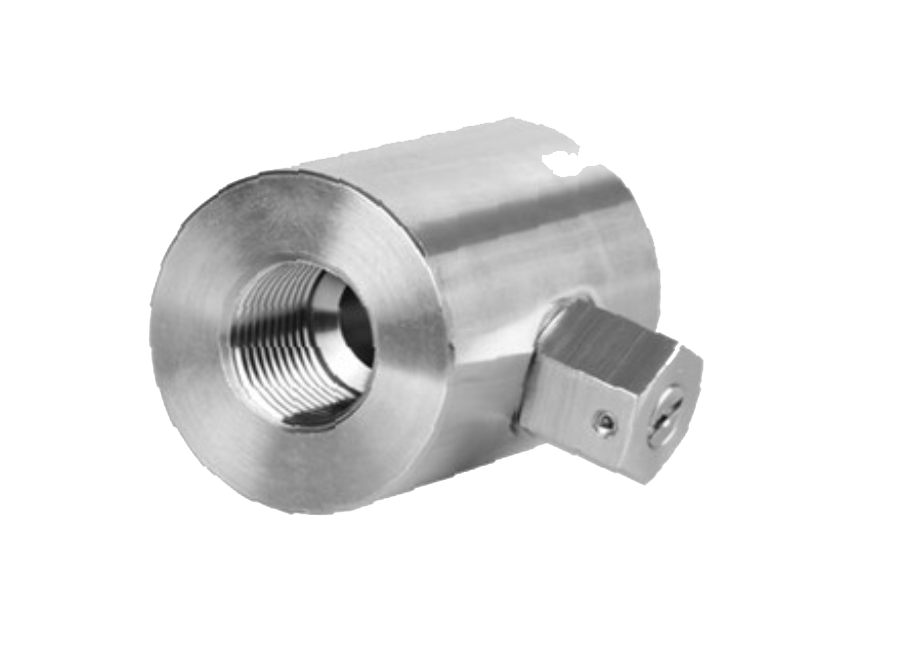

Stainless steel measuring chamber up to 50 bar

Stainless steel measuring chamber for compressed air up to 50 bar

for measuring the dew point in high-pressure systems with purity requirements (e.g. PET bottle production))

More
