Intelligent chart recorder DS 500 for compressed air and gases
Up to 12 optional sensors can be connected. 7" colour screen with touch panel.
Details
- Measurement of mass flow rate, output of standard volume flow rate without additional measurement of pressure and temperature.

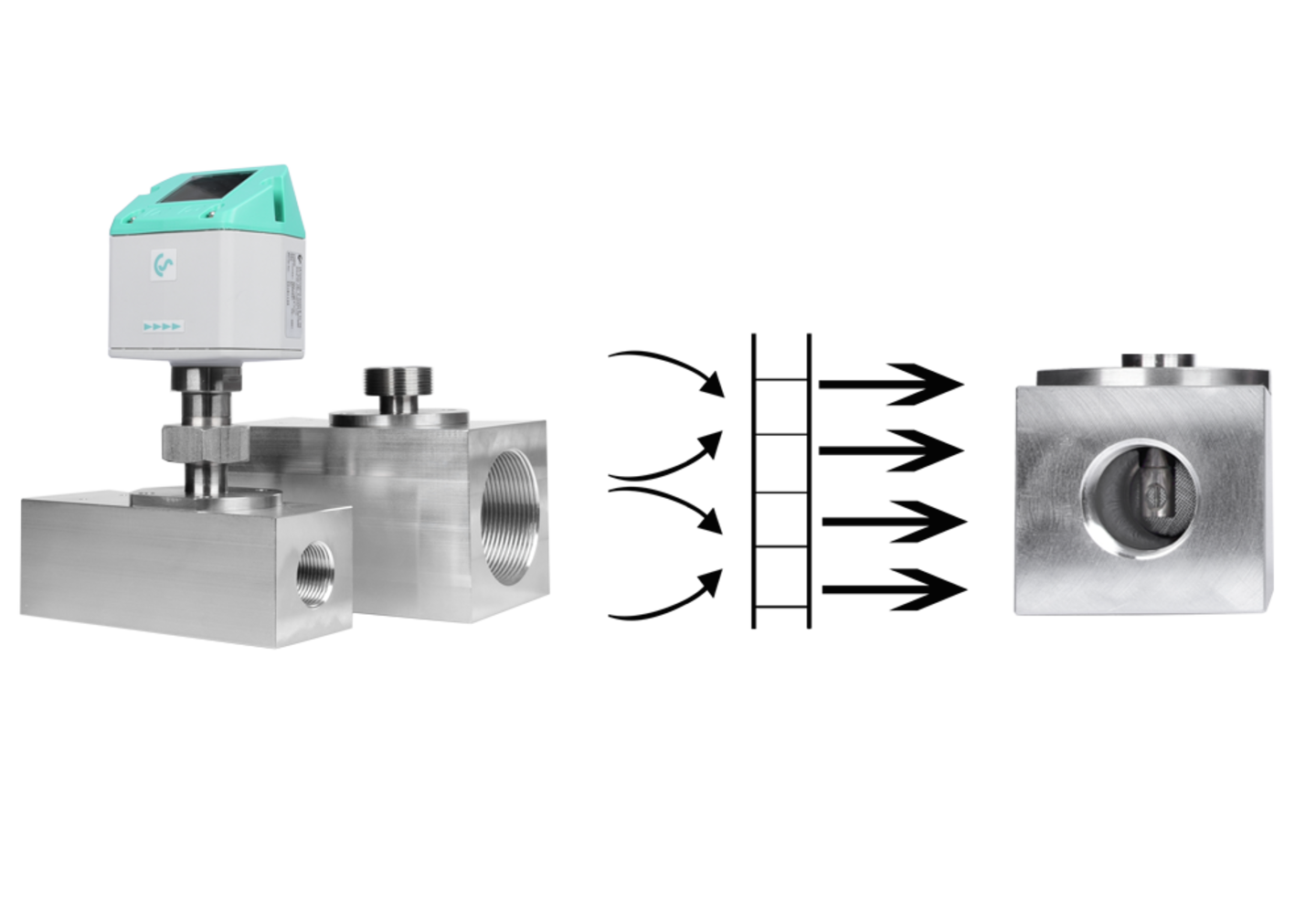

- Compact device for installation in limited space, no inlet and outlet sections necessary due to the integrated flow straightener
- Highly accurate at small as well as high flowrates

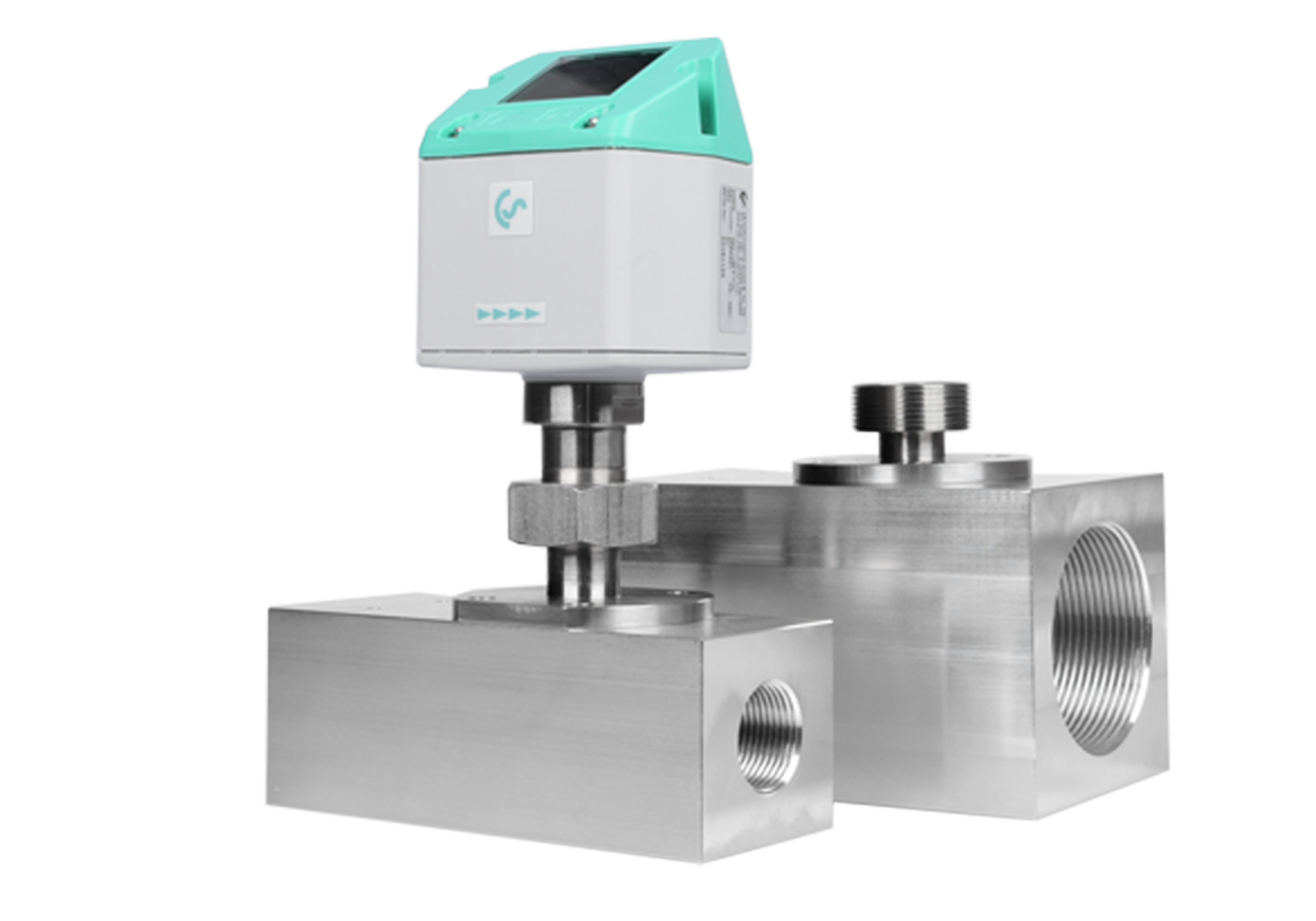

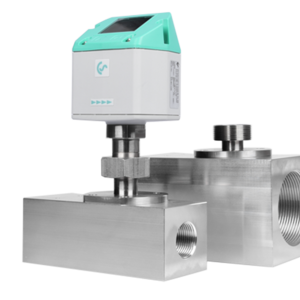

- Easy installation and removal of the sensor, the integrated measuring section can remain in the line for cleaning or recalibration of the sensor and can simply be closed with a sealing cap
- No moving parts, therefore low maintenance required
- Can be used for compressed air and non-corrosive gases such as nitrogen, oxygen, argon, helium, etc.
- 04...20 mA, pulse and a Modbus RTU (RS 485) interface as standard
- Optional interfaces: Modbus TCP (Ethernet), PoE, M-Bus
- Pressure range up to 40 bar
- Temperature range up to 80°C

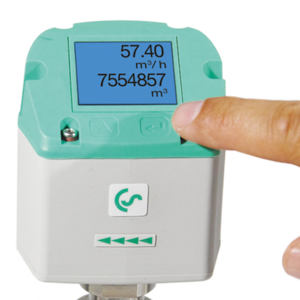

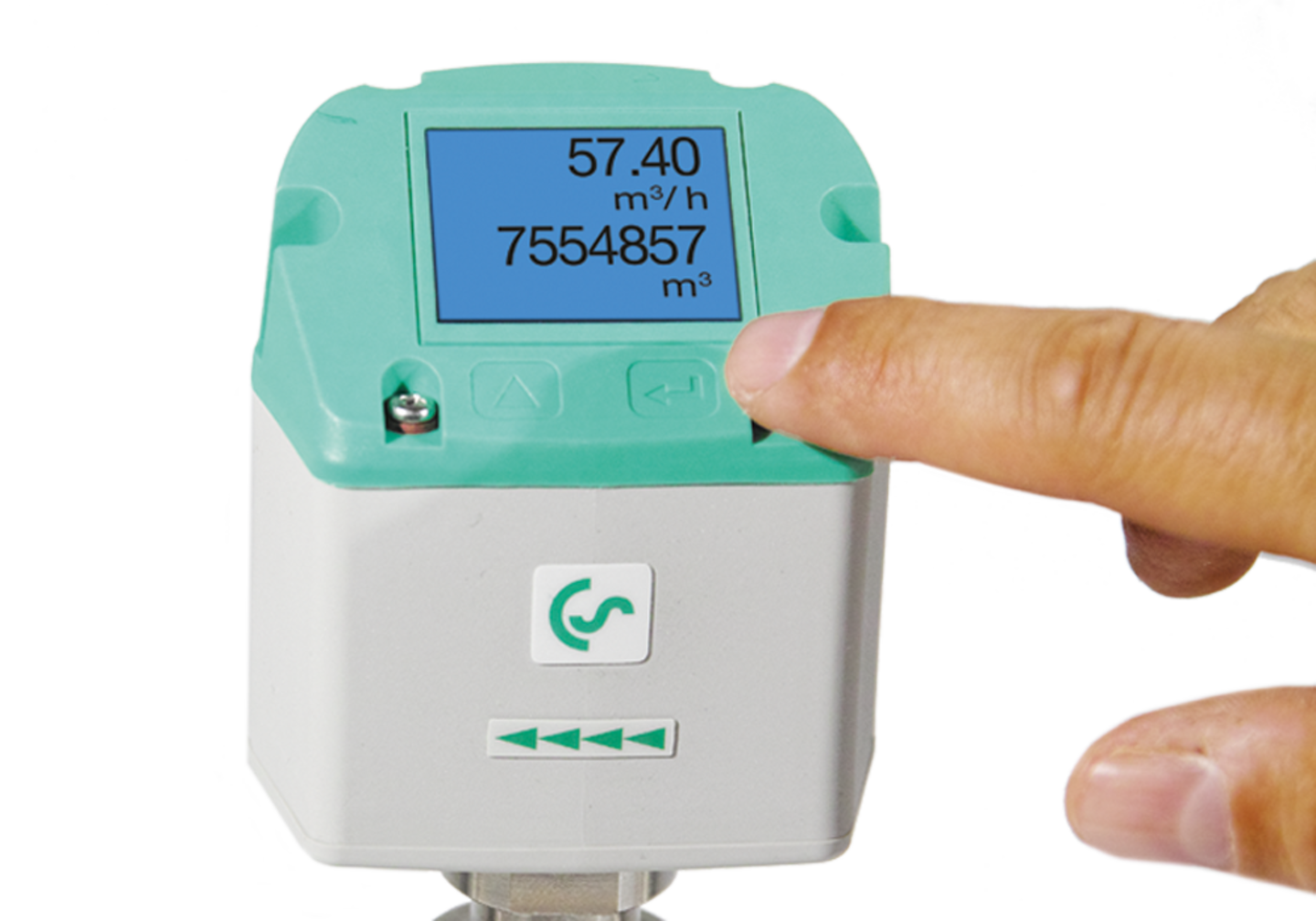

- Integrated display to show the measured values
- Available from ½" to 2''
- Settings adjustable via the keys of the display
- Main counter can be reset via the display
- For velocities up to 224 Nm/s
- Extremely precise with an accuracy of ± 1.5% or ± 1% of the measured value - as well as ± 0.3% of the final value
