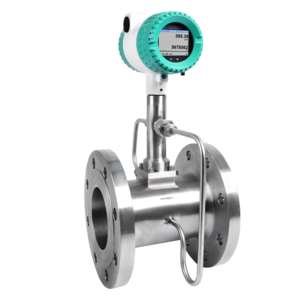

VX 570 - Vortex sensor for flow measurement

The high-precision all-rounder. Record and reduce your consumption and increase your sustainability with the VX 570. Monitor your consumption of a wide range of media with just one sensor.

  • Precise measurement from 2 m/s
  • Suitable for unknown or changing gas compositions and mixed gases
  • Usable for liquids and steam
  • Rough industrial applications can be realized due to robust aluminum housing
  • Measures actual volume flow and mass flow
  • Measurement of the standarized volume flow by integrated pressure and temperature measurement
  • The innovative measuring principle guarantees precise flow measurement in different media
  • Suitable for fast changing temperature and pressure changes as well as large mass flows
  • No moving parts, therefore low maintenance
  • Corrosion resistant - all parts in contact with media made of stainless steel
  • Insensitive to vibrations due to reference vibration measurement
to the request
The product has been added to the request.
to the request

Do you have specific requirements?
Select the appropriate attributes in our configurator and receive a customized quote for your request.

Configure product

Details

  • 04...20 mA, pulse and a Modbus RTU (RS 485) interface as default. Optional interfaces like Modbus TCP (Ethernet), PoE
  • Pressure range up to 63 bar
  • Protection class IP 67
  • Temperature range from -40°C to 350°C
  • Integrated display for showing the measured values
  • Available from DN15 to DN300
  • Settings adjustable via the keys of the display
  • Main counter reading can be reset via the display
  • For velocities from 2 m/s to 60 m/s
  • Highly accurate with an accuracy of 1% of the measured value
Instruction manual VX 570
