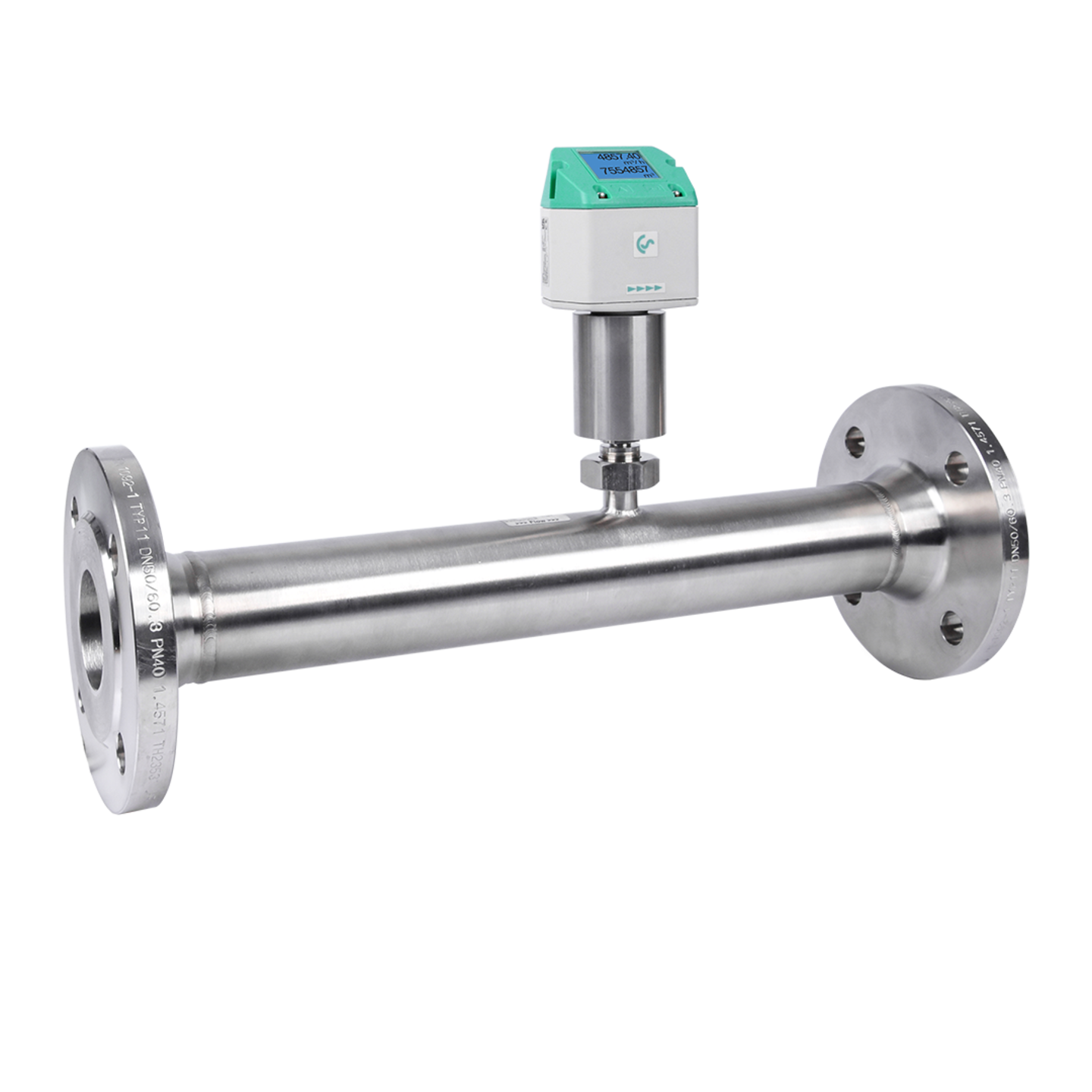

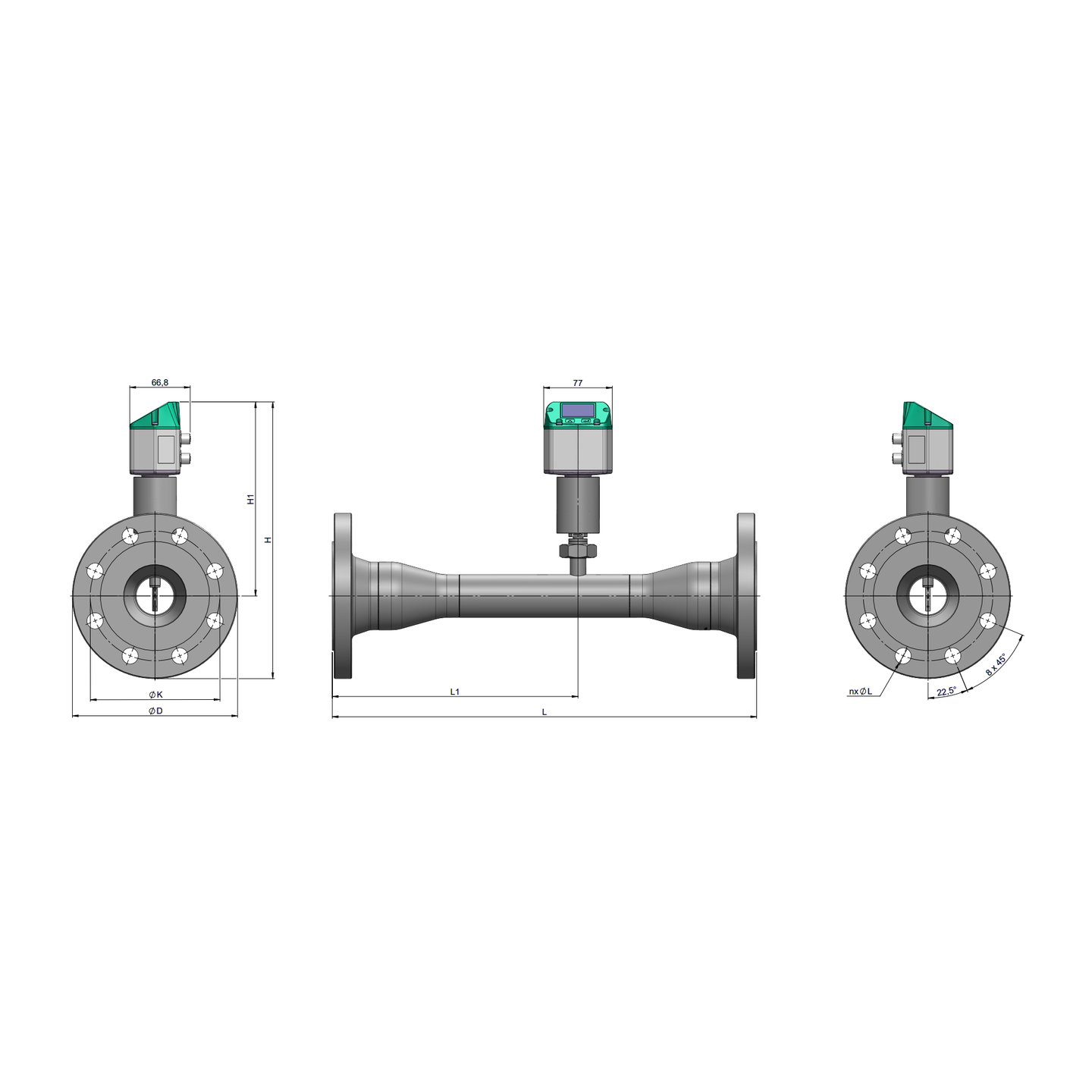

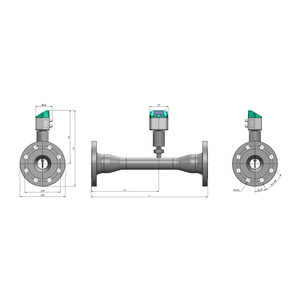

VD 520 - Inline flow meter

  • Ready-to-use compact design to minimise installation effort - therefore no volume corrector required
  • Provides Flow, Total consumption, Temperature and Pressure

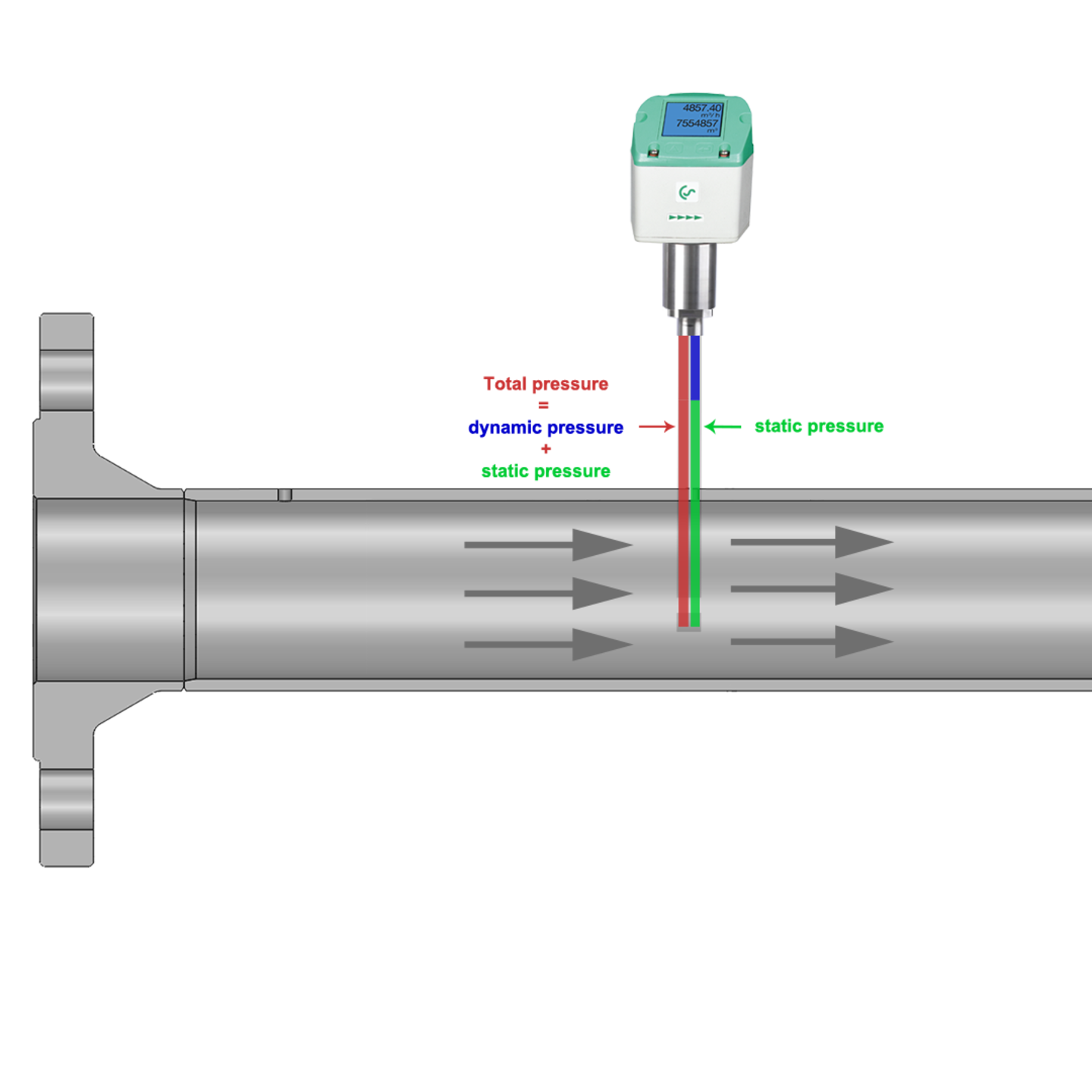

  • Differential pressure sensor element with unique sensitivity, measures highly accurately at < 2 m/s
  • Large flow measuring range with extended measuring span thanks to the use of measuring sections with a reduced inner diameter

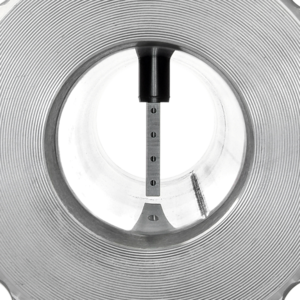

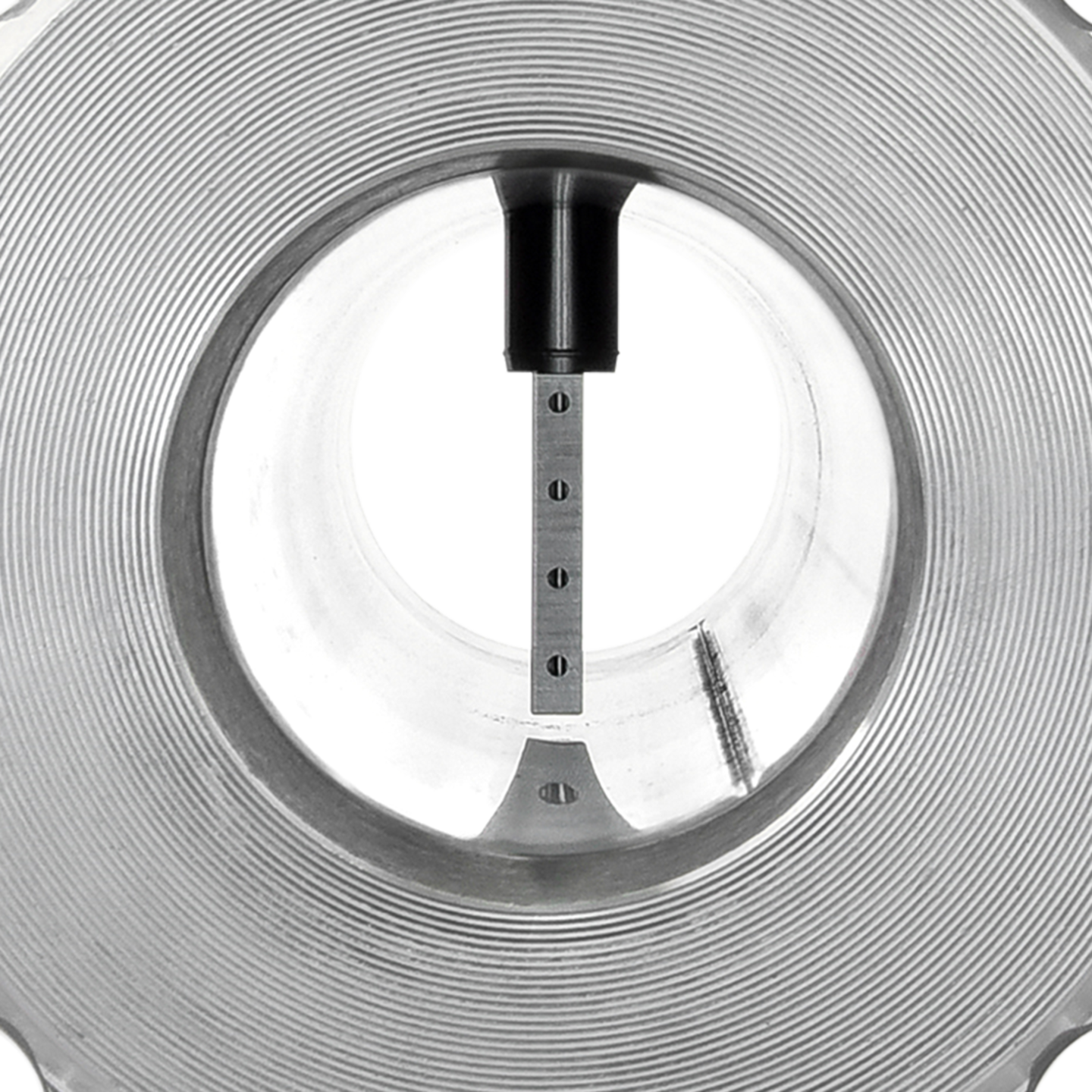

  • Smaller inlet sections due to the use of an averaging pitot tube
  • Robust design, no moving parts
  • Sensor head can be removed for calibration
to the request
The product has been added to the request.
to the request

Do you have specific requirements?
Select the appropriate attributes in our configurator and receive a customized quote for your request.

Configure product

Details

Area of application:

  • Wet compressed air
  • Technical gases
  • Mixed gases: e.g. Natural gas/H2
  • LPG
  • propane
  • CO2
Instruction manual VD 520
